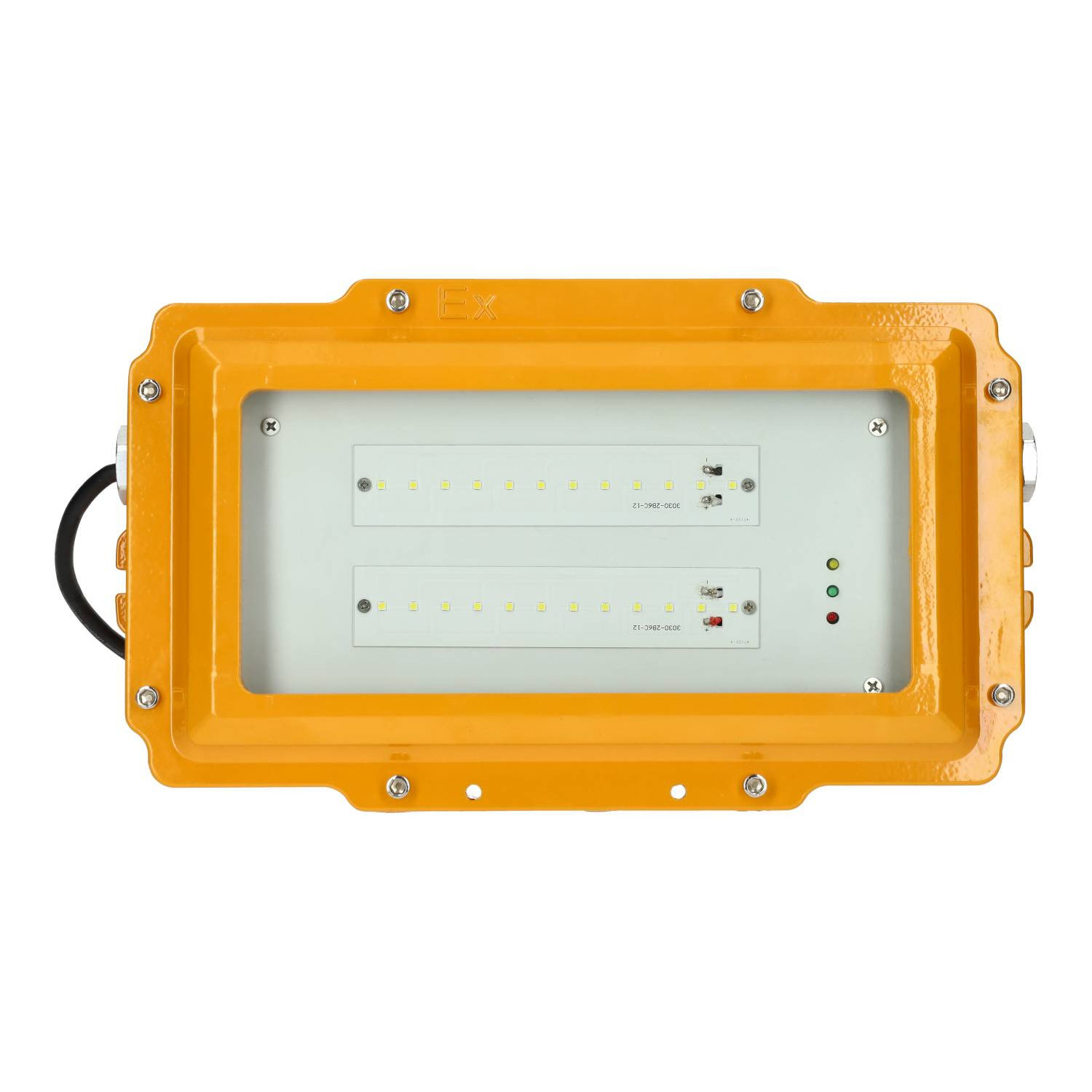

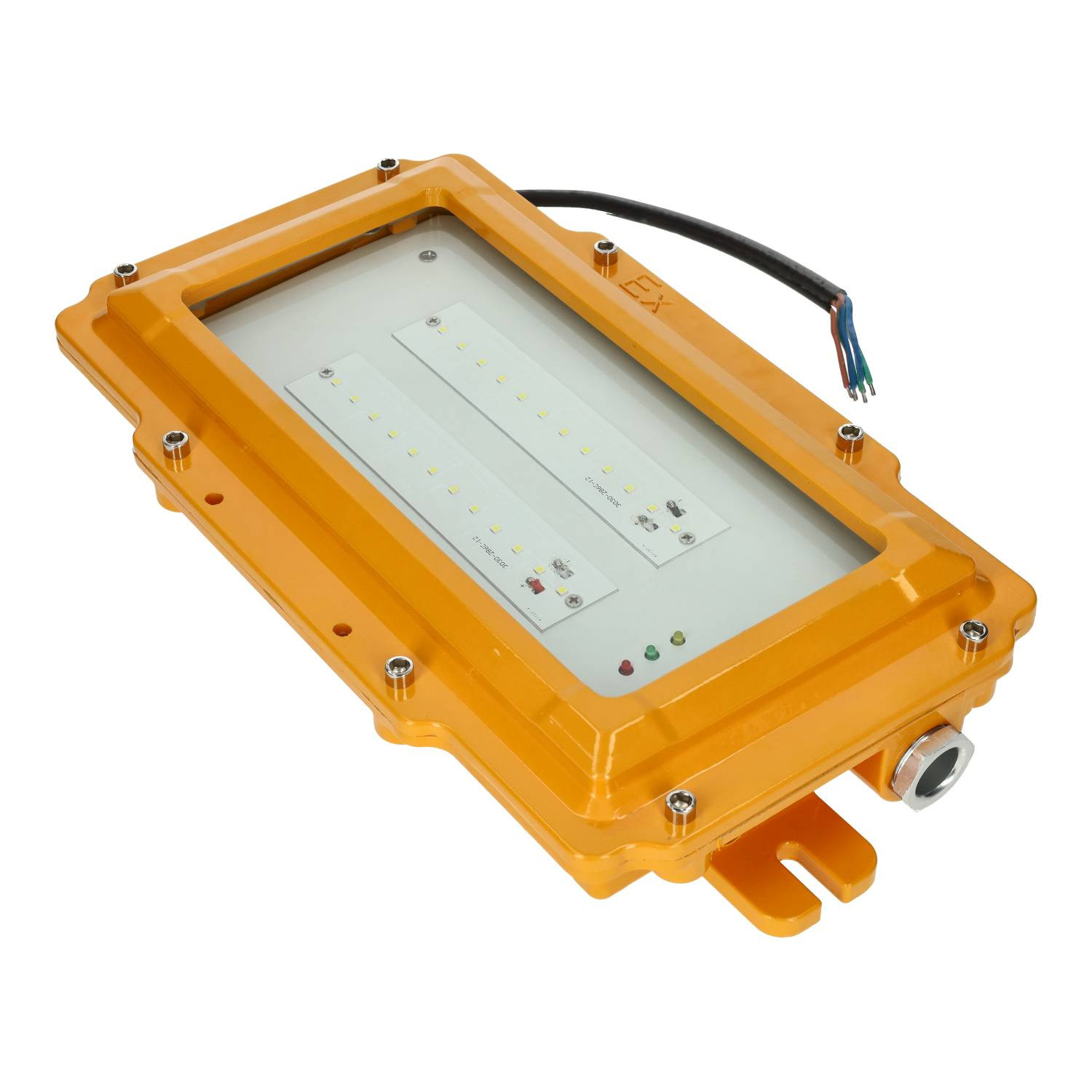

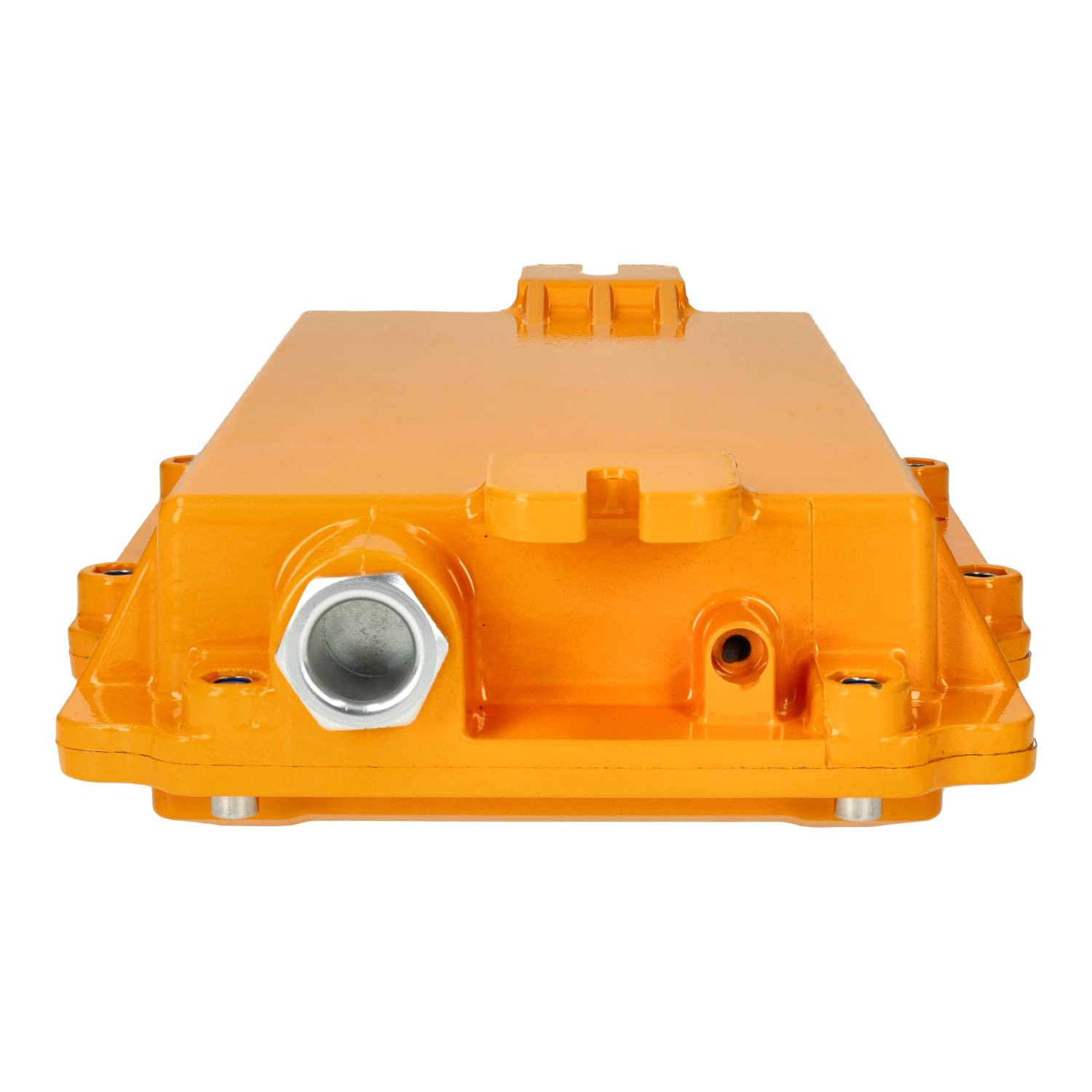

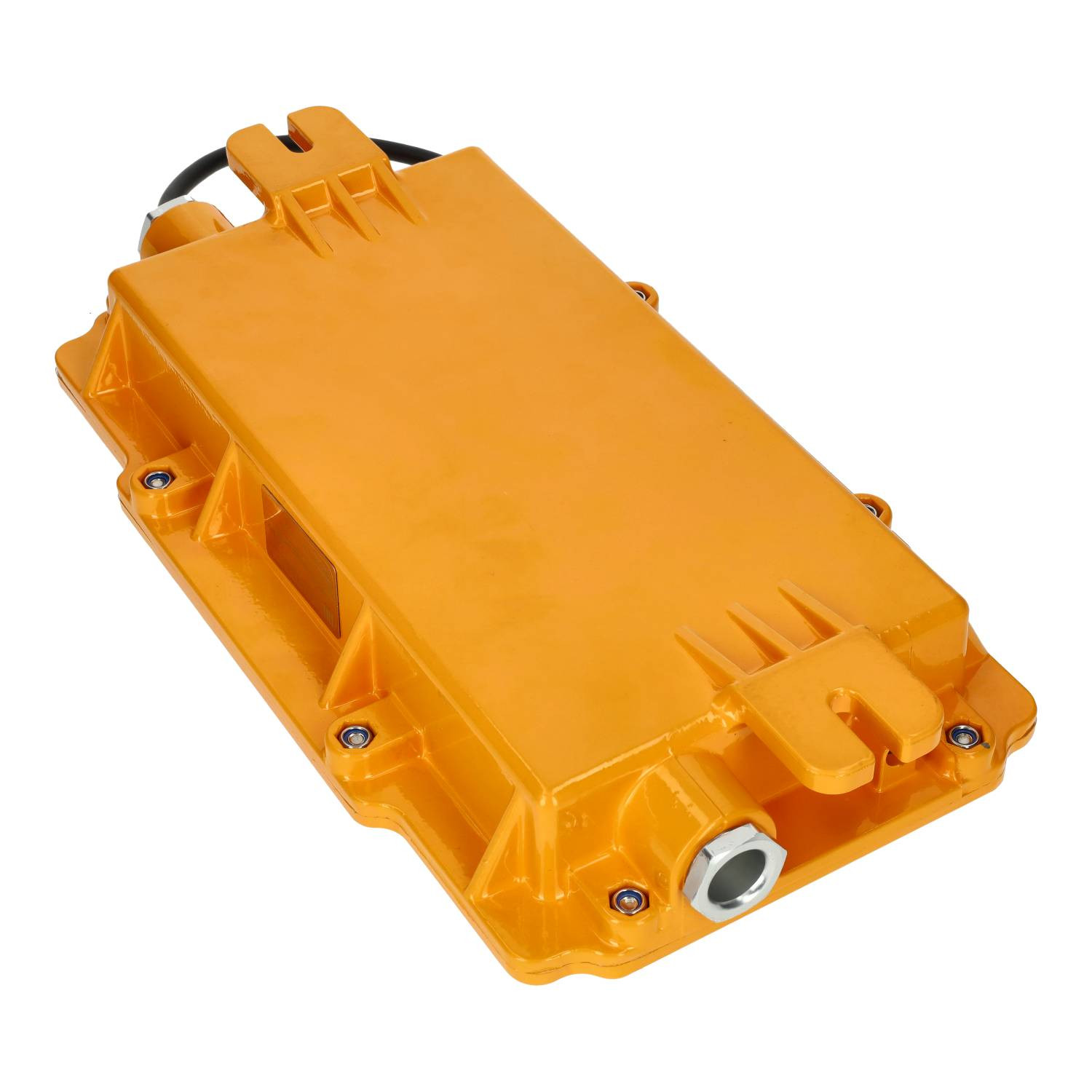

Non-permanent emergency luminaire LED ATEX 3W

The ATEX 3W LED Floodlight is a lighting system for industrial environments with risk of explosion due to flammable gases or combustible dust. This product complies with the ATEX Directive (2014/34/EU), guaranteeing its safe use in areas classified as hazardous (Zones 1, 2, 21 and 22). It incorporates an internal back-up battery that allows the light to remain on for 2 hours in emergency mode in case of power failure, ensuring safety in critical situations. This SMD LED spotlight offers exceptional energy efficiency and a long life of up to 50,000 hours. It has a luminous flux of 200 lumens and an opening angle of 120º. IP65 rated for extreme conditions, both indoors and outdoors. Regulatory Compliance ATEX Certification: Suitable for zones 1 and 2 (gases) + zones 21 and 22 (dust). Additional certifications: CE, RoHS, complying with safety and ecological compatibility standards. Light type and characteristics Power: 3W. Luminous flux: 200 lumens. Colour temperature: Cool white light (6000K). Opening angle: 120º, ideal for wide and homogeneous illumination. Energy efficiency: Power factor 0.95, indicating high efficiency. LED type: SMD technology, known for its uniformity and luminous efficiency. Dimensions and materials Dimensions: 352 x 200 x 70mm. Material: Made of aluminium, guaranteeing strength and durability. Degree of protection: IP65 (water and dust resistant). Warranty and Lifetime Lifetime hours: Up to 50,000 hours, designed to last for years without compromising performance. Warranty: We offer a 5-year warranty, backing the quality and reliability of the product. Working Temperature Range: Operates from -20°C to +40°C, ideal for extreme environments. Surface Mounting: Designed for direct installation on walls or ceilings. Power cable: Not included. A cable suitable for the specific atmosphere where it is installed must be used, with a minimum diameter of 7mm (compatible with the cable gland of the lamp). Technical characteristics of the ATEX 3W LED spotlight with non-permanent emergency function Dimensions: 352 x 200 x 70mm Power: 3W Luminous flux: 200 lumens Available colour temperature: Cool white light (6000K). Opening angle: 120º Input voltage: Compatible with global standard mains: 180/240 V AC Frequency: 50/60 Hz LED type: SMD technology Material: Made of aluminium Degree of protection: IP65 (water and dust resistant). Lifetime: 50,000 hours Warranty: 5 years Working temperature range: Operates between -20°C and +40°C Certifications: CE, RoHS What does the non-permanent emergency function mean? The non-permanent function in an emergency lighting system means that the luminaire is only activated when there is a power failure in the mains power supply. In other words, under normal conditions (when there is power), the luminaire remains off and does not consume any energy. However, when there is a power failure, the luminaire automatically switches on thanks to its internal battery, providing emergency lighting for a certain time (in this case, 2 hours). Differences between permanent and non-permanent function: - Permanent function: The luminaire is always on, either powered by the mains or by the battery in case of an emergency. This means that it consumes energy continuously. - Non-permanent function: The luminaire only switches on when it detects a power failure. Under normal conditions, it remains switched off and does not consume any electricity, which makes it more energy-efficient. Advantages of the non-permanent function: - Energy savings: As the luminaire is not constantly on, it consumes less energy compared to permanent emergency systems. - Less wear and tear: As the luminaire is switched off most of the time, the components (such as the LEDs and the battery) have a longer lifetime. Regulatory compliance: Many industrial or commercial environments require emergency systems to ensure safety in case of power failures, and the non-permanent function meets these requirements without the need to be always on. Practical example: Imagine a warehouse or petrol station where this LED spotlight with non-permanent function is installed: As long as the power is on, the luminaire remains switched off. If a power failure occurs (e.g. during a storm or mains failure), the luminaire is automatically activated, providing emergency lighting for 2 hours to allow safe evacuation or continuation of critical activities. Questions about ATEX LED floodlights What does ATEX mean and why is it important for this LED floodlight? ATEX is a European certification that regulates the use of equipment in potentially explosive atmospheres, ensuring its safety in environments where there is a risk of flammable gases, vapours or combustible dust accumulation. This luminaire is specifically designed to comply with this regulation, making it ideal for use in critical industrial environments. How long does the battery last in emergency mode? The internal battery allows the luminaire to operate for 2 hours in emergency mode in the event of a power failure, ensuring safety in critical situations. What does IP65 mean and why is it important for this luminaire? The IP65 protection rating indicates that this luminaire is completely dustproof (6 ) and protected against water jets from any direction (5 ). This makes it ideal for use both indoors and outdoors, even in wet or weathered environments. What kind of maintenance does this luminaire require? Maintenance is minimal. Simply wipe the luminaire body periodically with a dry or slightly damp cloth to remove accumulated dust or dirt. Avoid using abrasive chemicals or direct water jets as they may damage the finish. What advantages does this luminaire offer over other similar models? ATEX certification: Guarantees its safe use in areas with risk of explosion (zones 1, 2, 21 and 22). Energy efficiency: It consumes only 3W and offers a luminous flux of 200 lumens, making it highly efficient. Durability: Thanks to its IP65 protection rating and aluminium housing, it is resistant to extreme conditions. Long life: Designed to last up to 50,000 hours, reducing the need for frequent replacements.
